Outline

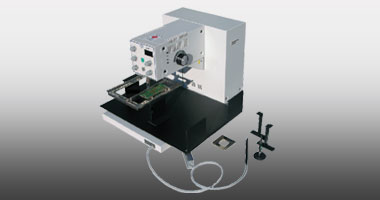

This rework system is designed to remove most SMT components like QFPs, SOPs, PLCCs SOJs, PGAs, BGAs, Connectors and other chips. It does not require any special nozzles or additional accessories. Built in timer to prevent overheating of board and component. The hot air nozzle has an adjustable motion range of up to 50mm per axis.

Features

Can handle most SMT parts of up to 50mm square without requiring different nozzles.
Can remove SMT connectors by setting a single axis motion.
The built in timer enables to prevent damage of PCB and near by parts caused by over heating.
Anybody can use this system without difficulty doe to the simplified programming.
Compact and light weight.
Low cost, highly efficient.
Can rework the micro components like 0603

Control Panel/Rework of Micro Component

Control panel			Rework Operation of QFPs and others The osollation range of Nozzle can be adjusted up to 50 mm in the axis of X and Y. The vacuum pick is used to quickly remove SMT components when the solder melting by hot blow air.

			Rework Operation of Micro-components Set the X and Y Axis Knob at 0 and set the Blow Knob at 1 to 2. Confirming the target component with the optional camera and tool kits for small component or a magnified mirror, the removal can be done.

Specifications

Heating Method	HOT AIR NOZZLE -4mm dia, 350 Watts
Airflow Rate	1.5L - 12L/min in 8 Steps
Air Pump and Vacuum Pump	Internal, Does not Require Shop Air
Nozzle Motion Range Maximum	X & Y: 0-50mm, Z=25mm
Temperature Control	Analog with Digital Readout for 260 to 600 °C
Timer Control	Analog with Digital Readout for 5 - 500 seconds
Max.PCB Size	Throat Depth=420mm, Width=Any Size
Power Consumption	AC100V, 120V or 230V 360W 50/60Hz
Dimensions	300mmW x 310mmHx 450mm D
Weight	9kg

Operation for Rework of Micro Components

Set the Knob of X & Y in 1 (reading) and set the Knob of BLOW in 1-2 With the Power "ON", the NOZZLE is inclined forwards. Observe the target component with the optional MONITOR& CAMERA and remove or place the component.
The SMT PIN is available to assist in the removal and placement of the micro-components.

Current Customers

Fujitsu, Fuji Electricals, Hitachi, Juki, JVC, Matsushita, Meidensha, Meteorlogical Agency Mitsubushi, NEC, National Observatory, Omuron, Oki Electricals, Panasonic, Sanyo, Sharp, Sony, Sumitomo, Toshiba, Yasukawa, Yokogawa and others
