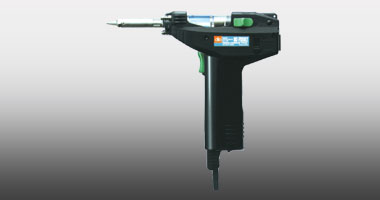

SC-7000Z Desoldering Tool：Product's Details
Features
- Direct connection between the diaphragm pump and the tip can provide high vacuum efficiency which can accommodate for the 8-12 layered PCB.
- The combination of a 100W ceramic heater with sensor feedback temperature control circuit and high vacuum capacity can provide best work efficiency with no failure.
- Protection against ESD is secured.
- Quite compact, light-weight unit portable and ready to use at any location.
- Low noise and low vibration.
- The removal of SMD components can be easily done by a flick of the selector lever and by replacing the tip with the hot blow nozzle.
Applications
| Removing the solder of DIP by the suction tip |
Melting the solder of QFP/SOP by the hot blow for removal |
 |
 |
| Melting the solder of PLCC by the hot blow for removal |
Melting the solder of other SNDsby the hot blow for removal |
|
|

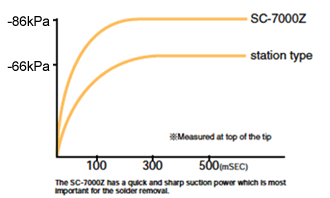

Time Required to Reach the Maximum Vacuum
Specifications
| Voltage | AC100V, 120V, 230V, 50/60HZ |
| Power Consumption | 120W |
| Pump | Diaphragm type |
| Motor output | 12W |
| Vacuum attained |
-86kpa |
| Time required to reach maximum vacuum |
0.1 seconds |
| Air flow rate (OPEN) |
15 liter/minute (Open) |
| Heater | 100W (Ceramic) |
| Control System | Feed back zero cross over type |
| Temperature Range | 350 - 500°C |
| Insulation resistance |
More than 100MΩ |
| Max.Temperature of hot blow | 400°C |
| Weight |
420g |
