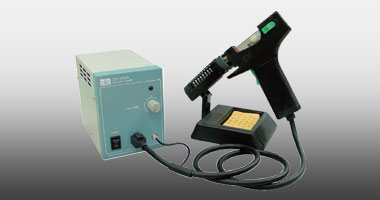

SC-400A Soldering/Desoldering Tool：Product's Details
Outline
Designed For SMT and Thru-hole Desoldering of Eutectic or LeadFree Solders.
Features
- Light Weight for ease of use for even long periods
- Low noise and vibration for user comfort
- The SC-400A (Shop Air/Venturi) can be plugged directly to the machine using a factory air or independently using an internal double pomp N2 capable.
Station and Gun Specifications
Specifications
Station
| Power | AC100V·120V·230V 50/60Hz |
| Power Consumption | Max 240W Stabilized 70W (Include Gun) |
| Air Supply | Insert 0.3Mpa for Compressed Air or Nitrogen |
| Dimension | W100mm D170mm H136mm |
| Weight | 1600g |
| Cord Length | 2m |
Gun
| Heater | Ceramic Zero-Cross Switched |
| Installation Resistance | 100MΩ（400 °C ） |
| Vacuum Power | -62 kpa |
| Max Temp. | 480 °C (max) |
| Dimension | W190mm D28mm H155mm |
| Weight | 300g |
| Cord Length | 1m |
SC-400A.pdf
